What Are the Standard Sizes of Circuit Breakers?
Feeling lost in a sea of circuit breaker sizes? Choosing the wrong one can cause constant problems, or worse, create a serious safety hazard. Understanding the standards is simple.

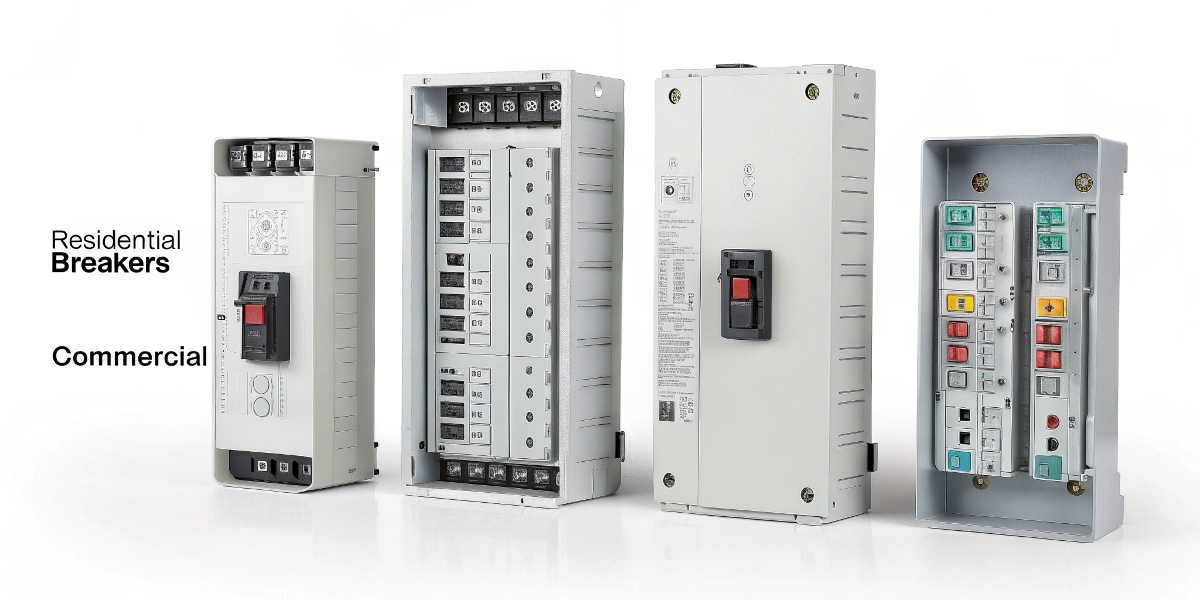

Standard residential circuit breakers are typically 15A and 20A for general lighting and outlets. Larger appliances use 30A to 60A double-pole breakers. Commercial systems use these plus larger sizes like 100A, 200A, or even 800A for heavy equipment, ensuring proper protection.
Knowing the common sizes is the first step. But the real key to safety and efficiency is understanding why a specific size is used for a specific job. As an engineer, I've seen firsthand how a small mismatch can lead to big problems. Let's dig deeper into the questions that truly matter for anyone managing electrical components, so you can make the right choice every time.

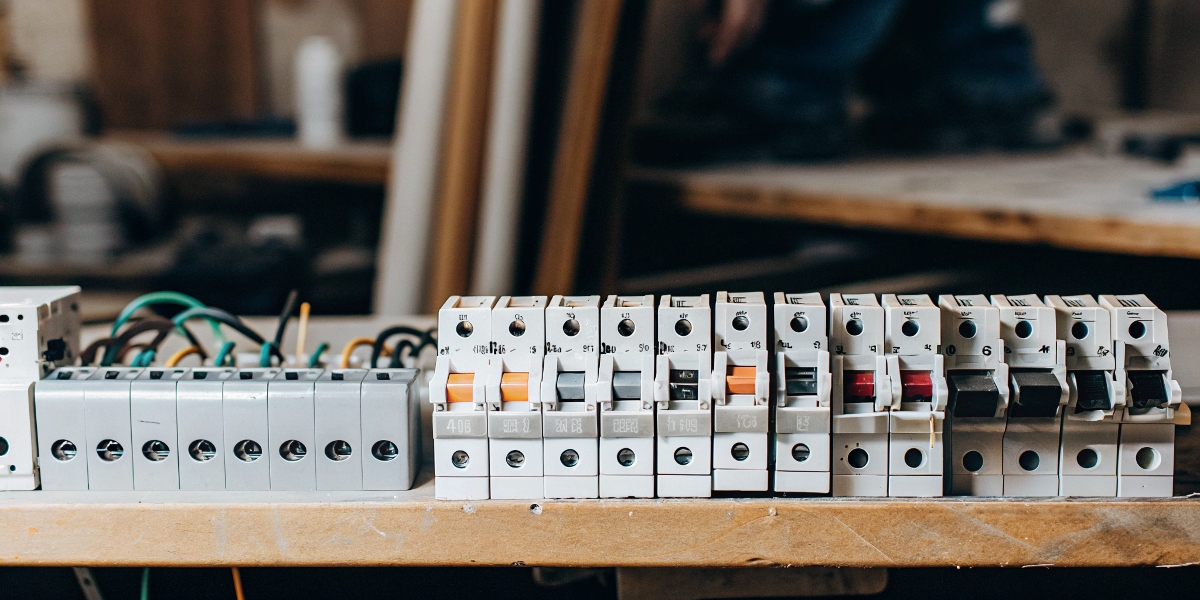

Does it matter if you use a 15 or 20-amp breaker?
Choosing between a 15-amp and 20-amp breaker seems minor. But this choice can lead to annoying circuit trips or become a hidden fire risk in your walls.

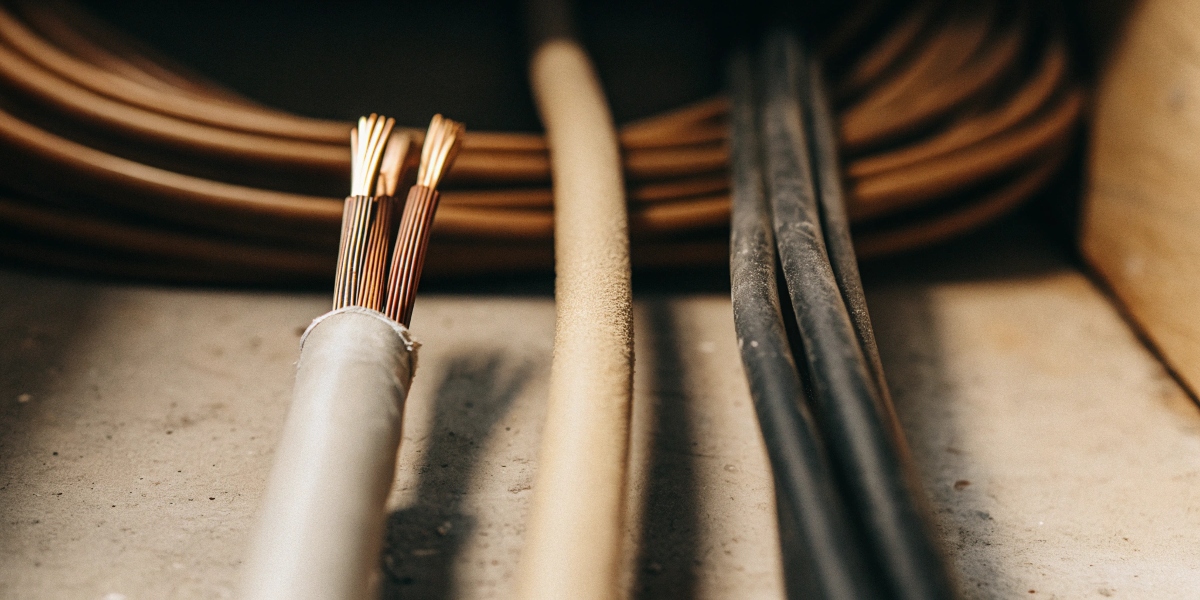

Yes, it absolutely matters. A 15-amp breaker must protect 14-gauge wire, while a 20-amp breaker requires thicker 12-gauge wire. Using the wrong breaker for the wire size is a dangerous code violation that can cause overheating and fire.
The relationship between a circuit breaker's amperage rating and the wire gauge it protects is one of the most fundamental rules in electrical safety. Think of the wire as a pipe and electricity as water. The breaker is the safety valve. If you put a valve designed for a large pipe (a 20-amp breaker) on a small pipe (14-gauge wire), the small pipe can burst from the pressure before the valve ever shuts off. In my early days, I inspected a home where the owner had "upgraded" his breakers to 20-amps to stop them from tripping. The 14-gauge wires in the walls had become dangerously hot, melting their insulation. He was lucky he didn't have a fire.
Ampacity and Wire Gauge Match
| Breaker Size | Minimum Copper Wire Gauge (AWG) | Typical Application |
|---|---|---|
| 15-Amp | 14-Gauge | General lighting, standard bedroom outlets |
| 20-Amp | 12-Gauge | Kitchen outlets, bathroom outlets, garage |
Always remember: the breaker protects the wire. A 15-amp breaker trips when the current exceeds 15 amps, protecting a 14-gauge wire. A 20-amp breaker on that same wire would let 19 amps flow through, which is enough to cook the wire long before the breaker ever trips.

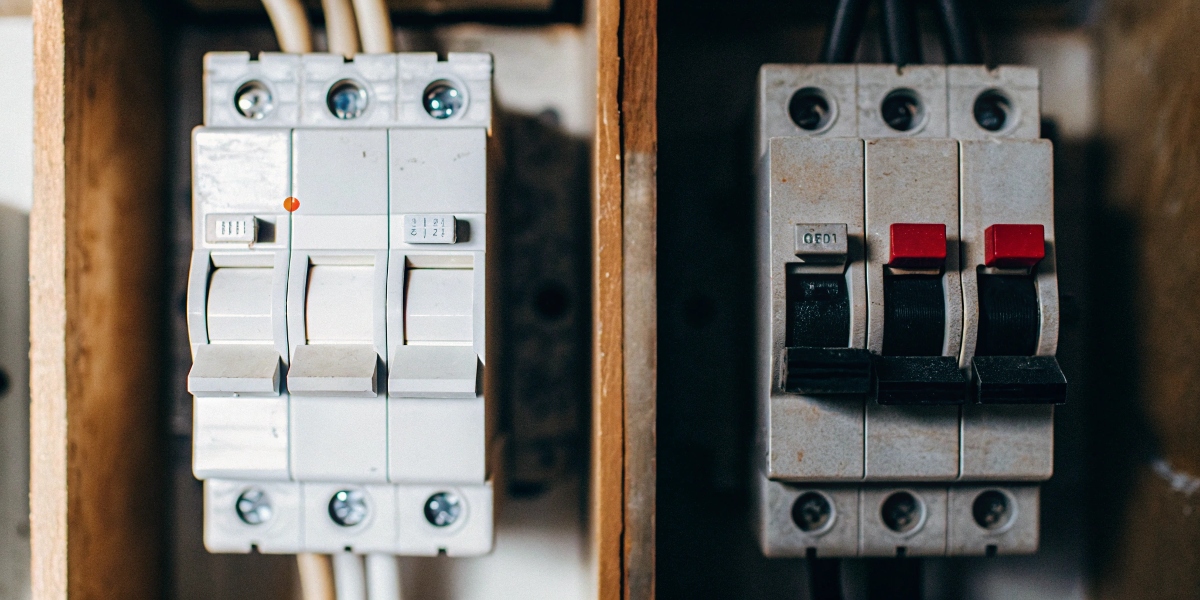

Is a 20-amp breaker 120 or 240?
Seeing a 20-amp breaker doesn't tell you the whole story. Assuming the voltage can damage your equipment or even the electrical panel itself. The answer is simple.
A 20-amp breaker can be for either 120 volts or 240 volts. A single-pole 20A breaker is 120V and is used for standard circuits. A double-pole 20A breaker is 240V, used for high-power appliances that need more energy.
The voltage depends on how many "poles" the breaker has. This refers to how many hot bus bars it connects to inside the electrical panel. Most panels in North America supply two "legs" of 120V power. A single-pole breaker clips onto one of these legs to deliver 120V. A double-pole breaker is twice as wide and clips onto both legs simultaneously to deliver 240V. This is crucial for purchasing managers, who need to source parts for various projects. You might need thousands of 1-pole 20A breakers for a residential development but only a few hundred 2-pole 30A breakers for the water heaters.
Single-Pole vs. Double-Pole Breakers
| Breaker Type | Poles | Voltage | Common Use Cases |
|---|---|---|---|
| Single-Pole | 1 | 120V | Lights, standard outlets, garbage disposal |
| Double-Pole | 2 | 240V | Electric dryer, water heater, central AC |
| Three-Pole | 3 | 208V/480V | Industrial motors, large commercial HVAC |
So, when you see "20-amp," you need to ask one more question: one pole or two? That's the difference between powering a microwave and powering a small water heater. It's a simple detail that makes all the difference in system design and safety.
What is the 80% rule for circuit breakers?
You might think a 20-amp breaker is safe for a 20-amp load. But constantly running it at full capacity causes nuisance tripping and can wear out the breaker.
The 80% rule is a core safety standard from the National Electrical Code (NEC). It states that a circuit breaker should not handle a continuous load1 greater than 80% of its total rating to prevent overheating and ensure long-term reliability.
A "continuous load" is any load that runs for three hours or more at a time. This includes things like office lighting, servers, or heating equipment. The 80% rule exists because running a breaker at its maximum limit for a long time generates a lot of heat. This heat can degrade the breaker's internal components, leading to premature failure or, worse, a failure to trip when a real fault occurs. For my clients who run manufacturing lines, this rule is non-negotiable. An unexpected shutdown from an overheated, tripped breaker can cost thousands in lost production.
Calculating Your Maximum Continuous Load
| Breaker Rating | 80% Continuous Load Limit |
|---|---|
| 15 Amps | 12 Amps |
| 20 Amps | 16 Amps |
| 30 Amps | 24 Amps |
| 100 Amps | 80 Amps |
So, for a standard 20-amp circuit with continuous loads, you should not plan for more than 16 amps of total draw. While some special breakers are rated for 100% capacity, they are more expensive and not standard. For most applications, sticking to the 80% rule is the safest and most cost-effective way to design a reliable electrical system.
How to determine the size of a circuit breaker?
Sizing a new circuit breaker feels like a difficult engineering task. Choosing the wrong size either fails to protect the circuit or causes constant and frustrating tripping.
To size a breaker, add up the total wattage of all devices on the circuit and divide by the voltage (120V or 240V) to get the total amps. For safety, select a breaker rated for at least 125% of that load.
Sizing a breaker correctly is a straightforward process when you break it down. Applying the 125% factor (the inverse of the 80% rule) gives you the necessary safety margin for continuous loads. Let's walk through a quick example for a kitchen circuit.
A Step-by-Step Sizing Guide
- List Devices & Wattage: Identify everything on the circuit.
- Microwave: 1200 Watts
- Toaster: 900 Watts
- Coffee Maker: 750 Watts
- Total Watts: 2850 Watts
- Calculate Total Amps: Amps = Watts / Volts.
- 2850 Watts / 120 Volts = 23.75 Amps
- Apply the 125% Rule: Multiply your total amps by 1.25.
- 23.75 Amps * 1.25 = 29.69 Amps
- Select the Next Standard Size Up: The calculation shows you need at least 29.69 amps of protection. The next standard breaker size is 30 amps.
- Match the Wire: A 30-amp breaker requires a 10-gauge copper wire. If you only have 12-gauge wire, you cannot use a 30-amp breaker. You would need to split the load across two separate 20-amp circuits. This final check is the most important part of keeping the system safe.
Conclusion
Understanding standard breaker sizes, the 80% rule, and wire compatibility2 is essential. This knowledge ensures you build a safe, reliable, and efficient electrical system every single time.
